Infrastructure Inspection Services

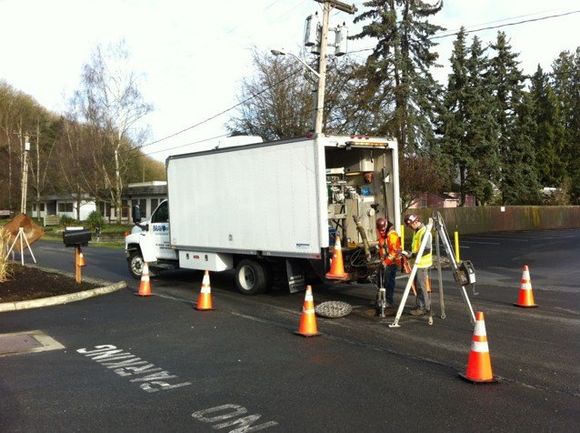

Infrastructure Inspection (CCTV Cameras):

How we do it:

CCTV Surveys: By placing a $60,000 robotic camera into the system, we can remotely video, screenshot and log the structural conditions of your infrastructure.

Reduce unnecessary high excavating costs and reduce liability by documenting the condition with our certified practices and coding formats with:

• NASSCO-PACP
• WRC

Specialized Options:

Lateral Inspection: The lateral launcher allows Bravo to inspect most laterals from the main line and incorporate all findings into our various reporting formats.

• Reduce costs be reducing additional entry points and permissions/clearances
• Pan and Tilt video
• Loacting sondes attached to lateral camera
• No excavation

GIS/GPS Mapping: This technology provides a very cost effective method of meeting the federal guidelines and calculating the total discharge information required to obtain a National Pollutant Discharge Elimination System (NPDES) permit.

Benefits & Technical Aspects afforded by Bravo CCTV:

• Inspection of pipes from 3” – 120”
• RST Video: Single conductor cable which improves image qualify and lighting in large pipes
• Delivery Format Options:
• CD-Rom/DVD
• SSD Drive (Thumb/Hard Drive)
• Digital Prints
• Excel/Access
• Other Equipment/Options:
• Marine Options
• Explosion Proof
• Large and Mini Tractors for Rigorous Conditions
• Skids for smoke stakes
• Inclinometer
• Push Camera for 3”-6” lines
• Confined Space Entry

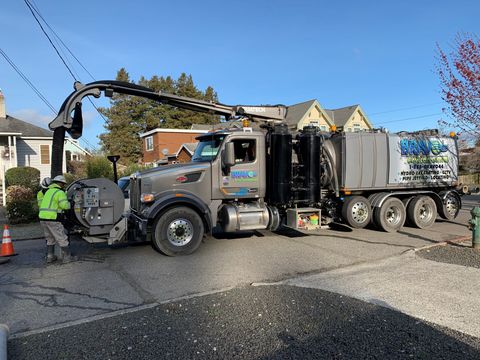

Manhole (MH) Inspection:

Manholes are a large source of inflow and infiltration (I&I) into sanitary sewer systems. Inspection and repair offers one of the most cost effective means of reducing I&I. Bravo performs high quality inspections, customized to meet your reporting needs.

Benefits of Hiring Bravo:

• No confined space entry
• Down hole cameras
• For accurate inflow estimates the Bravo can provide you with Mpegs of any infiltration
• Cameras have zoom capability
• Very safe and efficient method
• Onsite digital data entry reduces human error

Digital delivery of reports available

• Access
• Excel
• WinCan

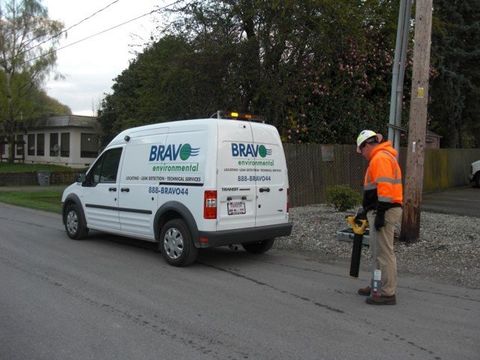

Locating:

Experienced technicians utilize the latest in locating technologies to surface mark buried structures, sewer lateral connections, point failures, utility conflicts, and transmission pipeline depths and locations.

Determining the location of underground utilities using the following methods:

• CCTV cameras with integrated Electronic Locating systems
• Locating beacons (sondes) to depths of 40+ feet
• Inductive and conductive locating
• Dye-Testing
• Smoke-Testing

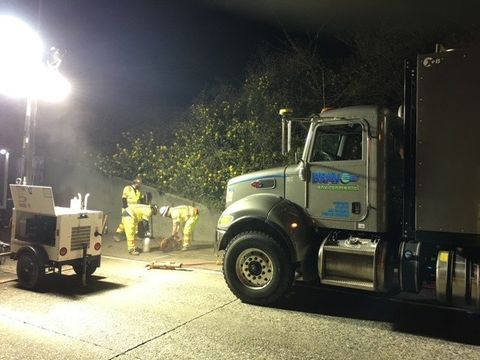

Smoke-Testing:

Smoke-testing has become a world-wide standard for finding leaks in sewer systems. How? By forcing smoke-filled air through a sewer or plumbing system, leaks can be quickly detected as smoke escapes through problem areas. This method involves pumping smoke through sanitary sewers from utility manholes in streets or within public easements while observing and documenting where smoke exits.

Locate:

• Storm and Sanitary cross conections
• Buried structures; Manholes, Cleanouts, catch basins.
• Cost effective source control
• Pipe damage

What it determines?

• Exiting smoke can indicate the location of broken pipes, manholes and catch basins.
• Find roof or foundation drains connected to the sewer system.
• Indicating infiltration or inflow might enter the sanitary sewer system.
• Pavement cracks above the sewer, from landscaping above private side sewers.
• Discover homes with foundation drains connected to the sewer.
• Find leaks in basements through unused floor drains
• Disconnected or faulty plumbing fixtures
• Other direct openings to connecting sewers.

Safety: Visibility and odor last only a few minutes with adequate ventilation. This smoke is nontoxic, harmless and creates no fire hazard. Typically, local fire and police authorities are notified, and the inspection team is available at test sites to answer questions during the smoke-testing.

Documentation includes:

• Digital photos
• Optional GPS data for xyz coordinates
• Mpeg capture of smoke
• Access based reporting with links to MPEGs
• Site Address overlaid on video

Bravo can provide you with a digital photo showing the smoke leaks with the date, time and location. This will make it difficult to dispute data during reviews with property owners.

Confined Space:
